Description

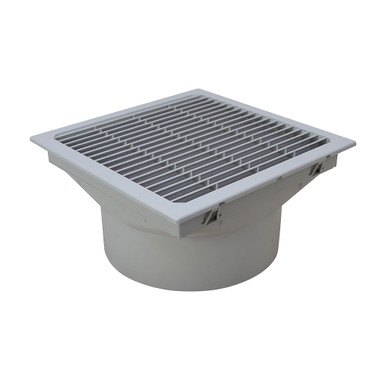

13″ GRILL 473 CFM 230 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF1326424. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Plastic housing with metal fan blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 70db rating. Terminal block electrical connection.
SPECIFICATIONS
- Pull Type Fan
- Model Number SF1326424
- Flow 473 CFM max.
- Voltage 230 AC
- Amperage 0.74 Amps
- Power 175 Watts
- Speed 2750 RPM
- Operating Temperature Range Min. 14° F to Max. 131° F
- IP Rating 54
- Mount 8 holes on 5-15/16″ to 11-7/8″ x 5-15/16″ to 11-7/8″ centers
- Cutout Dimensions 11.5″ x 11.5″
- Blade Dia. 8-5/8″
- Number of Blades 5
- Size 12-3/4″ x 12-3/4″ x 6-1/2″
- Shpg. 11 lbs.
