Description

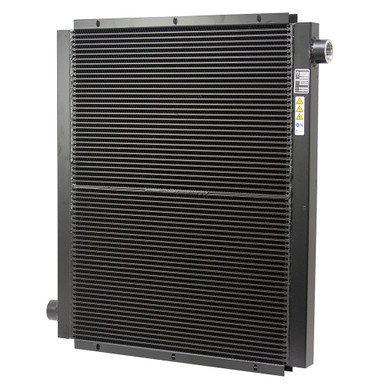

125 GPM AKG C120 Oil Cooler
Brand new AKG C series rugged bar and plate construction oil coolers that feature aluminum construction, leak-free SAE O-Ring connections and mounting tabs. Cooler performance listed in specs below is based on 1,000 SFPM (Square Feet Per Minute) cooling air flow.
SPECIFICATIONS
- Manufacturer AKG
- Model Number C120
- AKG Item 6892.014.1000
- Pressure 250 PSI max.
- Temperature 250 F° max.
- Construction Aluminum
- Flow 125 GPM
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 40449 - Port Size SAE 24
- Mount Six 7/16″ bolt holes on 10″ x 37.55″ centers
- Overall Depth (in.) 2.56
- Overall Width (in.) 31.5
- Overall Height (in.) 38.66
- Shpg. 94 lbs.
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
