Description
122.17:1 SIZE 87 2 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL87-120/1-145TC
- Box Size 87
- Stages 3
- Nominal Ratio 120:1
- Actual Ratio 122.17:1

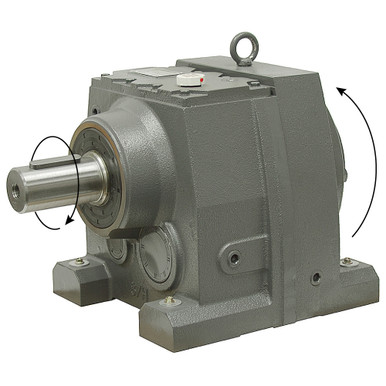

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 14 RPM
- Input Hp 2 Hp Max
- Output Torque 8265 in.-lbs. Max
- Over-Hung Load 3010 lbs. Max
- Service Class II
- Motor Mount 145TC
- Output Shaft 2.125″ dia. x 3.94″ long keyed, 1/2″ wide keyway, shaft end tapped 3/4″-10
- Base Mount Four 0.71″ holes on 10.24″ x 8.46″ centers
- Shpg. 171 lbs.
