Description

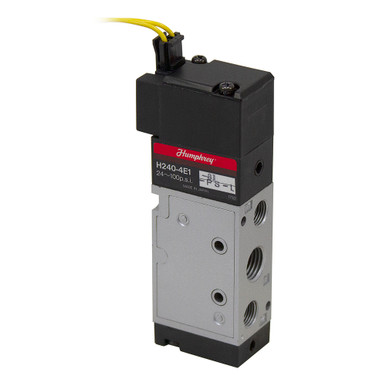

120 Volt AC 4-Way 2-Pos Humphrey Solenoid Air Valve H240-4E1-81-PS-L
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number H240-4E1-81-PS-L
- Type Indirect acting, internally piloted solenoid valve
- Voltage 120 Volt AC
- Flow Coefficient (Cv) 0.88
- PSI Range 24-100
- Number of Solenoids 1
- Number of Positions 2
- Valve Function 4-Way 2-Position
- Number of Ports 5
- Ports A, B & P RC1/4 (BSPT)
- Ports R1 & R2 RC1/8 (BSPT)
- Mount Two 3.3mm dia. Thru holes on 19.6mm centers
- Override Lock type manual override
- Electrical Connection Straight connector with LED indicator
- Included Accessories One Wire Lead
- Size 4 1/16″ x 15/16″ x 1 5/8″
- Shpg. 0.4 lbs.
