12 Volt DC 4-Way 2-Pos Humphrey Solenoid Air Valve H050-4E2-01

Description

12 VOLT DC FOUR WAY TWO POSITION DOUBLE SOLENOID VALVE

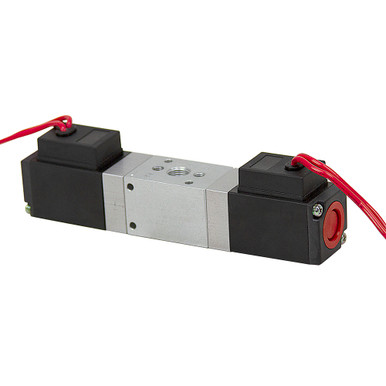

New, HUMPHREYmodel H050-4E2-01 double solenoid air valve. Direct acting. Use to control double or single acting actuator. Four way, two position, five port. 11″ wire leads on solenoids. Manual overrides.

SPECIFICATIONS

• Configuration Four way, two position   five port
• Voltage 12 VDC
• Current 240 mA
• Flow Coefficient (Cv) 0.07
• Pressure 20-100 PSI Max.
• Flow @ Valve Inlet/Outlet Pressure

  • 1.059 CFM @ 100/94 PSIG
  • 2.65 CFM @ 100/68 PSIG
  • 3.708 CFM @ 100/0 PSIG

• Air Temperature 32°to 122°F
• Top Mount Two 0.132″ dia. thru holes   on 1.07″ centers
• Side Mount Two 0.12″ dia. thru holes   on 0.71″ centers
• Ports

  • Pressure (P) 1/8″ NPT
  • Work (A&B) 1/8″ NPT
  • Exhaust (R1&R2) 10-32 UNC

• Size 5-11/16″ x 1-1/16″ x 1-7/16″
• Shpg. 1-1/2 lbs.
