Description

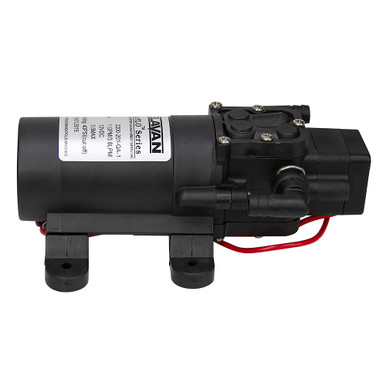

12 VOLT DC DIAPHRAGM PUMP
New, DELAVAN model 2200-201-QA-1 automatic demand diaphragm pump. Ideal for spot sprayers or as replacement on existing equipment. Santoprene diaphragm and Viton valves. Automatic shut off switch set to 40 PSI. Pump turns on at 25 PSI. Self priming to 4 foot suction lift. Can run dry intermittently without damage. Wire leads. Rubber vibration damper mounting feet. Port adapters can be installed to face forward toward the end of the pump body or backward toward the motor.
SPECIFICATIONS
- Brand Delavan
- Model Number 2200-201-QA-1
- Voltage 12 Volt DC
- Amperage 2.6 Amps
- Shut-Off Pressure 40 PSI
- Flow Rates
1 GPM @ open flow
0.85 GPM @ 10 PSI
0.71 GPM @ 20 PSI
0.61 GPM @ 30 PSI
0.42 GPM @ 40 PSI - Ports 3/8″ Hosebarb QA port adapters
- Duty Intermittent
- Temperature 110°F max.
- Mount Four bolt on 3.19″ x 2.25″ pattern
- Size 7″ x 3.625″ x 2.375″
- Shpg. 2 lbs.
