Description

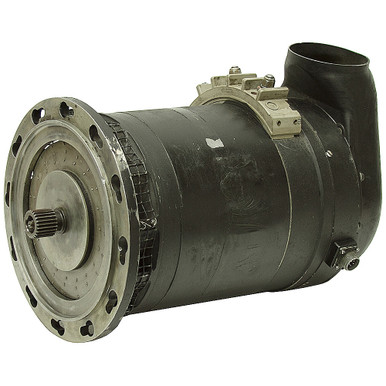

12.5 kva 120/240 VAC GENERATOR
Removed From Service BENDIX CORPORATION part number 51B8-3 AC generator with external voltage regulator. Manufactured for the military for AC power. Four inch diameter air cooling tube. Lug terminal ouput with inputs for external voltage regulator. Regulator included. Wiring diagram not available.
SPECIFICATIONS
- Power 12.5 kva
- Voltage 120/240 VAC
- Frequency 60 Hz
- Phase Single
- Power Factor 0.8-1.0
- Amperage 52.1 amps
- Speed 3600 RPM
- Shaft Nominal 1-1/4″ diameter 24T spline
- Rotation CCW
- Mount 12 hole on 10″ bolt circle
- Mounting Pilot Diameter 9″
- Size 16.25″ x 11″ x 13″
- Shpg. 160 lbs.
