Description

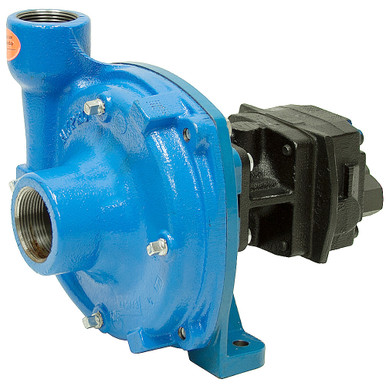

HYDRAULIC DRIVEN CENTRIFUGAL PUMP
Brand new HYPRO model 9303C-HM1C. Cast iron centrifugal pump with direct drive hydraulic motor. Power from tractor hydraulic circuit leaving PTO free for other uses.
SPECIFICATIONS
- Brand Hypro
- Model Number 9303C-HM1C
- Max. Flow Rate 114 GPM
- Max. Pressure 130 PSI
- Hydraulic Motor max. Inlet Pressure 3000 PSI
- Hydraulic Motor max. Oulet Pressure 100 PSI
- Max. Hydraulic Flow 13 GPM
- Pump Inlet Port 1-1/2″ NPT
- Pump Outlet Port 1-1/4″ NPT
- Hydraulic Inlet Port 1/2″ NPT
- Hydraulic Outlet Port 3/4″ NPT
- Max. Fluid Temp. 140° F
- Size 12.42″ x 11.69″ x 8.12″
- Shpg. 31 lbs.
