1:1 32 HP RA Gearbox 3 Shafts All Keyed and Crosshole

Description

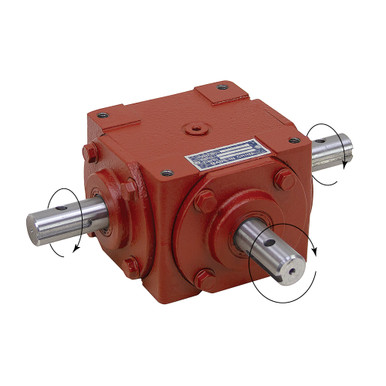

RIGHT ANGLE GEARBOX

Brand new. Right angle gearbox. One piece cast iron gear case and bearing caps. Roller bearings. Solid output shaft extends from both sides of case. Ships without oil, user must add 1/3 quart of 80-90 W oil prior to use.

SPECIFICATIONS

• Ratio 1:1
• Input Power
  40 HP intermittent
  32 HP continuous
• Input Speed 1800 RPM max.
• Input Shaft 1″ dia. x 2-1/4″ w/1/4″ keyway and 5/16″ dia. crosshole
• Output Shafts 1″ dia. x 2-1/4″ w/1/4″ keyway and 5/16″ dia. crosshole
• Mount Four mounting holes tapped 3/8″-16 on 4-1/4″ square centers
• Size 5.875″ x 6.5″ x 4.125″
• Shpg. 26.5 lbs.
