10" x 15.25" x 3.5" Double Acting Pneumatic Cylinder Hydroline C-831-390 S2A 10x15.25 LE8003-114-2B

10″ x 15.25″ x 3.5″ Double Acting Pneumatic Cylinder Hydroline C-831-390 S2A 10×15.25 LE8003-114-2B

Original price was: $499.95.Current price is: $99.99.

SKU: 400271 Category:

Description

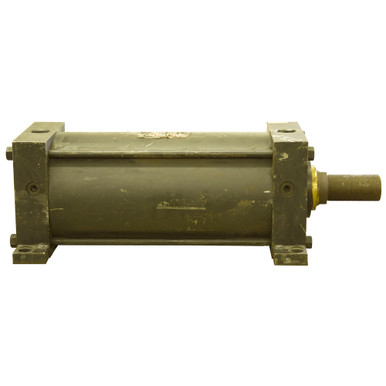

10″ x 15.25″ x 3.5″ DOUBLE ACTING PNEUMATIC CYLINDER
Unused, old inventory. HYDRO-LINE model C-831-390 pneumatic tie-rod cylinder with bolt-on gland cap. Each end cap has two 1″ tapped mounting holes on 12-3/8″ centers for mounting along axis of cylinder. Retracted length measured from base end to threaded rod end. “S2A 10×15.25 IE8003-114-2B” stamped into cylinder barrel.

SPECIFICATIONS
  • Double Acting, Pneumatic
  • Bore x Stroke 10″ x 15-1/4″
  • Barrel Thickness 1/4″
  • Pressure 250 PSI max.
  • Rod Dia. 3-1/2″
  • Ports 1-1/2″ NPT
  • Retracted Length 33-1/8″
  • Shpg. 450 lbs.
END MOUNTINGS
  • Rod End Threaded
  • Thread size-Pitch 2-1/2″-12
  • Thread Length 4-3/4″
  • Base End Flat
