Description

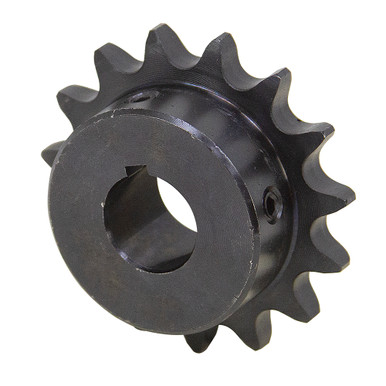

40 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 40 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 10
- Bore Size 5/8″
- Model Number 40BS10H-5/8
- Outside Diameter 1.84″
- Hub Diameter 1-1/4″
- Hub Type B (Hub on one side)
- Length Through Bore 7/8″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 0.28 lbs.
