Description
RIGHT ANGLE GEARBOX

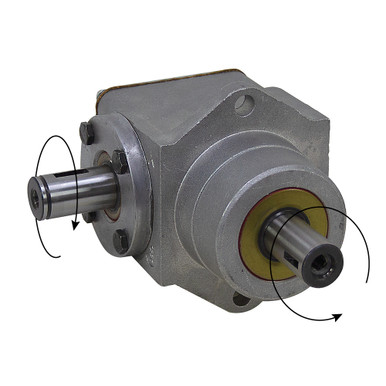

Brand new. PEERLESS 1000-015 gearbox. Cast aluminum gearbox housing. Ships filled with oil. Shafts rotate in opposite directions when viewed from end.
SPECIFICATIONS
- Brand Peerless
- Model 1000-015
- Ratio 1:1
- Rotation Opposite
- Input Power 10 HP max continuous
- Input Speed 3600 RPM max
- Output Torque 360 in-lb. max
- Input Shaft 7/8″ dia. x 1-1/2″ w/ 3/16″ woodruff keyway
- Output Shaft 7/8″ dia. x 1-1/4″ w/ 5/32″ woodruff keyway and 3/8″-24 tapped end
- Mount Two 13/32″ bolt holes on 4″ centers, 2.92″ dia. pilot
- Size 5.5″ x 4.75″ x 7″
- Shpg. 8 lbs.
