10.12:1 SIZE 137 75 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL137-10/1-364/5TC
- Box Size 137
- Stages 2
- Nominal Ratio 10:1
- Actual Ratio 10.12:1

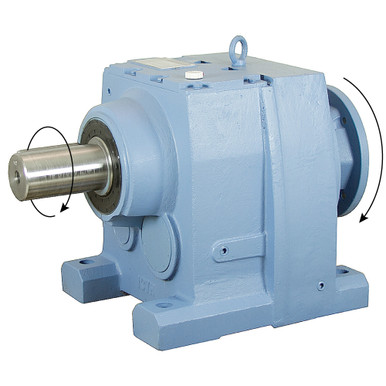

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 173 RPM
- Input Hp 75 Hp Max
- Output Torque 25784 in.-lbs. Max
- Over-Hung Load 3266 lbs. Max
- Service Class I
- Motor Mount 365TC
- Output Shaft 3.625″ dia. x 6.69″ long keyed, 7/8″ wide keyway, shaft end tapped 1″-8
- Base Mount Four 1.3″ holes on 19.29″ x 13.39″ centers
- Shpg. 685 lbs.
