Description

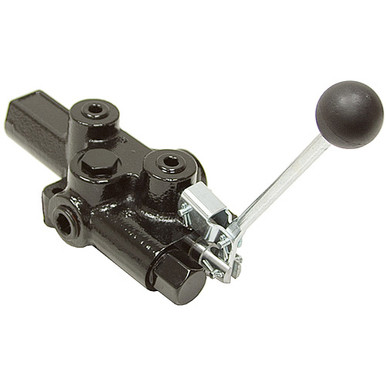

ONE SPOOL PRINCE CONTROL VALVE
Brand new PRINCE. RD2500 series 4 way 3 position hydraulic control valve for operating reversible hydraulic motors. Monoblock high tensile strength cast iron body. Hard chrome plated spools. Open center with conversion plug for closed center applications. Load checks.
SPECIFICATIONS
- Brand Prince Mfg.
- Model Number RD-2575-M4-ESA1
- Open Center
- Spools One
- Flow 20 GPM
- Pressure 3000 PSI max.
- Relief Valve factory set at 1500 PSI Adjustable 1500-3000 PSI
- In/Out Ports 3/4″ NPT
- Work Ports 1/2″ NPT
- Mount 3 holes thru body
- Size 9 ” x 4.25″ x 3 “
- Shpg. 12 lbs.
Spool Details:
- Spool 1 Double Acting spring centered
| Handle Kit For Prince RD2500 Series Valves 660130001 | 900691 |
