Description

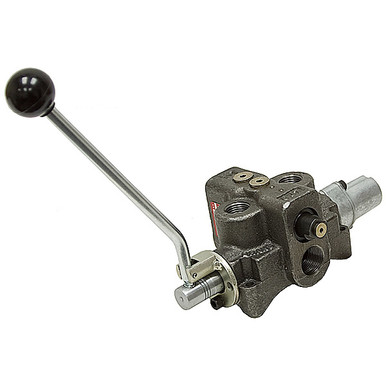

SINGLE SPOOL 18 GPM OC CONTROL VALVE W/ FLOW CONTROL
Brand new, BRAND HYDRAULICS model SDCF755M184LF1 directional control valve with flow control. Combines a 4-way directional control valve with a full range, pressure-compensated, by-pass type flow control valve, and an adjustable pilot-operated relief valve. Extremely fine flow metering to the work ports in direct proportion to the handle movement. Cast iron body with Buna-N O-rings. Handle included.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number SDCF755M184LF1
- Open Center
- Spools One
- Flow 18 GPM max.
- Pressure 3000 PSI max.
- Relief Valve Adj. set at 1500 PSI
- Reqd. Filtration 30 micron
- In/Out Ports 3/4″ NPT
- Work Ports 1/2″ NPT
- Mount 3 bolts on
2-5/16″ x 3-11/16″ x 3-15/16″ centers - Size 8.375″ x 4.25″ x 3.1875″
- Shpg. 8 lbs.
Spool Details:
Spool 1 Double Acting, metered flow motor spool, friction detent
