Description

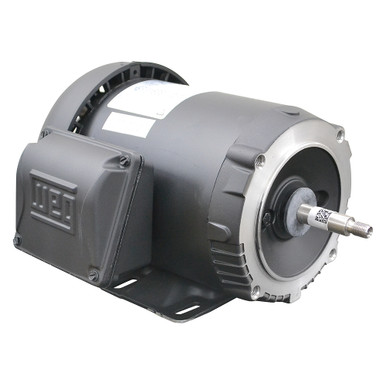

1 HP 3510 RPM THREE PHASE MOTOR
New, WEG three phase motor model W01-TE01C0X0X.
SPECIFICATIONS
- Brand WEG
- Model Number W01-TE01C0X0X
- Power 1 HP
- Voltage 230/460 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 2.88/1.44 Amps
- Speed 3510 RPM
- Rotation Reversible
- Service Factor 1.15
- Enclosure TEFC
- Duty Continuous
- Frame 56J
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ diameter bolt circle
- Rigid Base Mount Four 0.34″ dia. holes on 4-7/8″ x 3″
- Shaft 5/8″ dia. x 1-7/8″ smooth w/ 7/16″-20 thread and 11/16″ long
- Size 12.5″ x 9.5″ x 7.25″
- Shpg. 27 lbs.
