Description

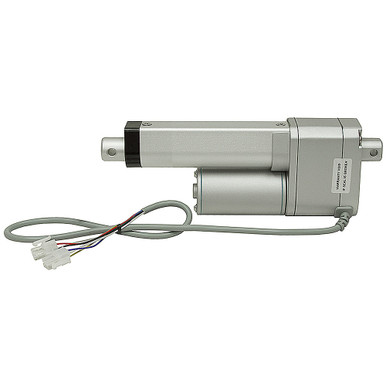

12 VOLT DC 110 LBS. LINEAR ACTUATOR
Brand new, GLIDEFORCE model LACT-2P-12V-20 light duty linear actuator. Built-in potentiometer allows for use with position-sensing circuits. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Non-adjustable limit switches at end of stroke both directions.
SPECIFICATIONS
- Brand Glideforce
- Model Number LACT-2P-12V-20
- Stroke 50 mm (1.97″)
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 110 lbs. max
- Extension Speed
No Load 0.57 in/sec
Max Load 0.48 in/sec
- Amps
No Load 1.2
Max Load 3.2
- Gear Ratio 20:1
- Duty 25%
- Operational Temperature Range
-14° F to +149° F
- Enclosure IP65
- Pin Holes 1/4″
- Retracted Length 195 mm (7.68″)
- Shaft Dia. 20 mm (0.787″)
- Size 8.25″ x 1.5″ x 3″
- Shpg. 4.5 lbs.
Mounting Brackets
| Linear Actuator Mounting Bracket – Light Duty Aluminum GlideForce LA-LD-BRACKET |
500535 |
| Linear Actuator Mounting Bracket – Light Duty Steel (2 Pack) GlideForce LA-LD-BRKT-KIT |
501069 |
Compatible Polarity Reversing Switches
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W |
500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W |
500726 |
Controller Kits
| Linear Actuator Controller GlideForce LA-CONTROLLER |
500536 |
| Linear Actuator Dual Controller GlideForce LA-DUAL-CONTROL |
500598 |
Optional Reversing Relay
| 12 Volt DC 100 Amp Reversing Relay GlideForce GF90-1244 |
500558 |
