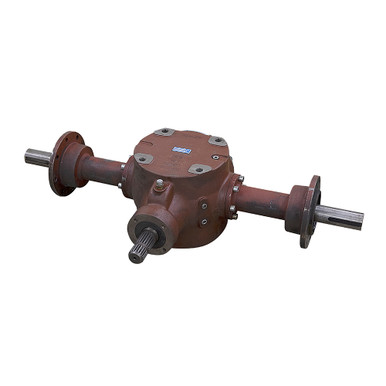

1.93:1 166 HP Right Angle 3 Shaft Gearbox Bondiol Pavesi S2155193001

Description

1.93:1 GEAR BOX
Unused old inventory. Bondiol Pavesi S2155193001 series 2000 multi-purpose gearbox. Solid output shaft extends from both sides of case.

SPECIFICATIONS

• Brand Bondiol Pavesi
• Model Number S2155193001
• Ratio 1.93:1
• Input Speed
     540 RPM
     1000 RPM
• Input Power
     108 HP
     166 HP
• Output Speed
     280 RPM
     518 RPM
• Output Torque
     24446 in-lb
     20281 in-lb
• Input Shaft 1-3/4″ dia. x 4-1/2″ 20 tooth spline
• Output Type Dual
• Output Shafts 2″ dia. x 5-1/2″ w/ 1/2″ keyway
• Mounting Four 3/4″-10 TPI threaded holes on 6-1/2″ x 6-1/2″ centers
• Output Shaft Mounting Eight 0.58″ holes on 7″ B.C.
• Size 44″ x 22″ x 10″
• Shpg 240 lbs.
