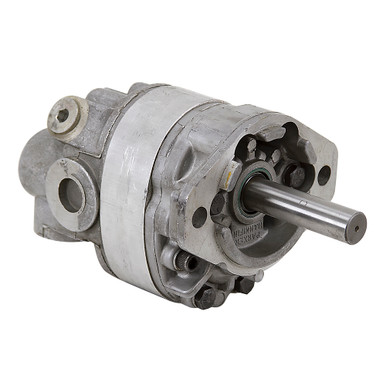

1.85 cu in Priority Hydraulic Pump Parker Hannifin H77BY2CA17560DS

Description

1.85 cu. in. PARKER HANNIFIN HYDRAULIC PUMP
New, PARKER HANNIFIN model H77BY2CA17560DS hydraulic gear pump. Aluminum housing. Priority flow divider with 6 GPM priority flow, protected by relief valve set to 1750 PSI.

SPECIFICATIONS

• Brand Parker Hannifin
• Disp. 1.85 cu. in. / rev.
• Pump Type Gear
• Rotation Clockwise
• Pressure 2250 PSI continuous
• Flow 13.3 GPM @ 2250 PSI, 1800 RPM
• Speed:
    1800 RPM rated
    3600 RPM max.
• Mount Two-bolt SAE A
• Shaft 3/4″ dia. x 2-1/2″ long w/ 3/16″ wide x 1-3/4″ long keyway
• Inlet Port SAE 12
• Outlet Port SAE 8 priority, SAE 10 auxiliary
• Size 6.75″ x 5.125″ x 5.125″
• Shpg. 11 lbs.
