Description

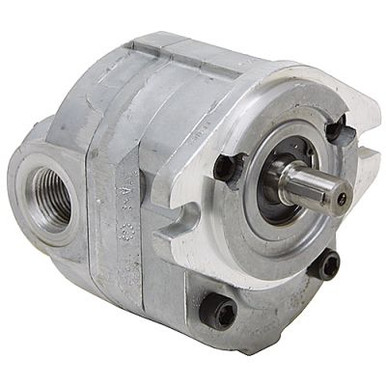

CROSS HIGH SPEED HYDRAULIC MOTOR
Brand new, Cross hydraulic gear motor. Model 40MH18DACSC. Pressure balanced loading plates for high efficiency. Aluminum body for good heat dissipation. Pressure lubricated Teflon impregnated sleeve bearings. Internal check valves eliminate need for case drain at shaft seal pressures under 250 PSI.
SPECIFICATIONS
- Brand Cross Mfg.
- Model 40MH18DACSC
- Cross Item 360036
- Displacement 1.8 cu. in. / rev.
- Pressure 3000 PSI max.
- Speed 3000 RPM max. continuous
- Flow 15.5 GPM for 1800 RPM
- Power 20 HP at 1800 RPM, 2500 PSI
- Torque 700 in-lbs. at 2500 PSI
- Rotation Reversible
- Mount SAE A 2 bolt
- Shaft 5/8″ dia. x 1-1/4″ long with 5/32″ keyway
- Ports SAE 12
- Drain Port 1/4″ NPT
- Size 5-1/4″ x 5-1/8″ x 4-15/16″
- Shpg. 9 lbs.
