1.5" x 6" x 1" Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB1506-S

1.5″ x 6″ x 1″ Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB1506-S

Original price was: $113.40.Current price is: $28.35.

SKU: 904275 Category:

Description

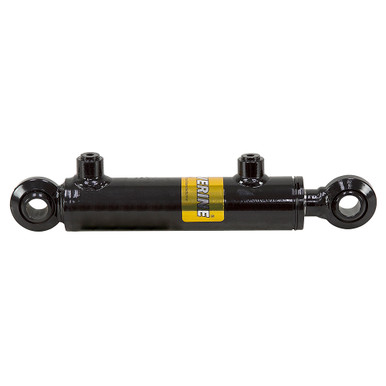

1.5″ x 6″ x 1″ DOUBLE-ACTING HYDRAULIC CYLINDER
Brand new WOLVERINE by PRINCE double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye mount on both ends to allow for angular misallignment.

SPECIFICATIONS
  • Brand Wolverine by Prince Mfg
  • Model Number WWSB1506-S
  • Double Acting
  • Bore x Stroke 1.5″ x 6″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1″
  • Column Load 3000 PSI max. @ full extension
  • Ports SAE 6
  • Retracted Length 13.25″
  • Shpg. 7 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Ball Width 0.97″
  • Ball O.D. 2.00″
  • Pin Hole 0.75″
  • Base End Swivel Eye
  • Ball Width 0.97″
  • Ball O.D. 2.00″
  • Pin Hole 0.75″
