Description

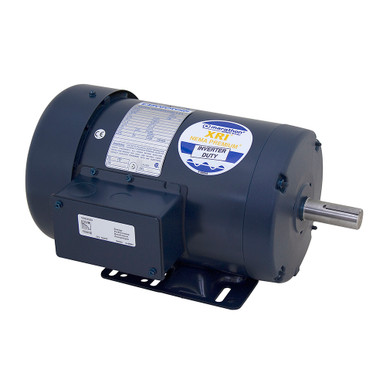

1-1/2 HP 1800 RPM 230/460 VOLT AC 3 PHASE GENERAL PURPOSE BASE MOUNT MOTOR
Brand new, MARATHON model 145TTFR16033 general purpose three phase, electric motor. Inverter-rated, speed range 10:1. Steel frame. No thermal overload protection.
SPECIFICATIONS
- Brand Marathon
- Model Number 145TTFR16033
- Catalog Number E2104
- Power 1-1/2 HP
- Voltage 230/460 Volt AC
- Amperage 4.8/2.4 Amps
- Speed 1750 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 145T
- Rigid Base Mount Six 0.34″ diameter holes on 5″ x 4″ to 5-1/2″ centers
- Shaft 7/8″ dia. x 2-1/4″ w/ 3/16″ keyway
- Size 11.37″ x 9″ x 7″
- Shpg. 50 lbs.
