Description

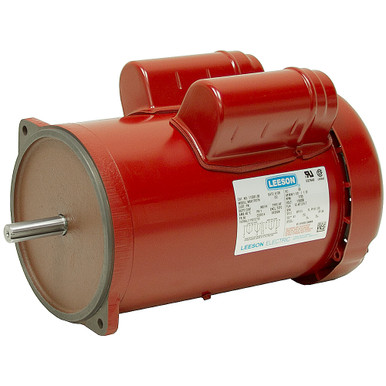

1-1/2 HP 1725 RPM 115/230 VOLT AC AUGER MOTOR
Brand new, Leeson model M6C17FZ7Z electric motor. Replacement poultry feed auger motor. Fully gasketed to keep dust out. Capacitor start and run motor. Mechanical centrifugal starting switch with overspeed protection. Steel construction. Manual overload protection.
SPECIFICATIONS
- Brand Leeson
- Model Number M6C17FZ7Z
- Catalog Number 117884.00
- Power 1-1/2 HP
- Voltage 115/208-230 Volt AC
- Amperage 13.4/7.2-6.7 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.0
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56
- Face Mount Two 0.343 dia. holes on 7-1/4″ B.C.
- Shaft 5/8″ dia. x 1.97″ w/ 3/16″ Key
- Size 11.65″ x 8.57 x 8.195″
- Shpg. 46 lbs.
