Description

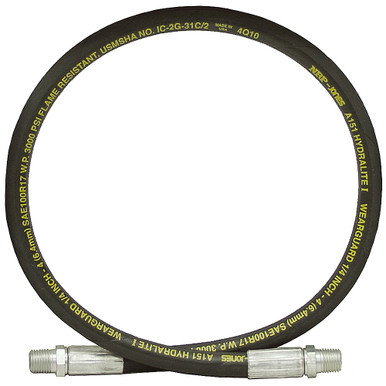

1/4″ X 120″ 1/4″ NPTM X 1/4″ NPTM 3000 PSI HYDRAULIC HOSE
Brand new, one-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R17 HydraLite I, One-Wire Braided
- Overall Length 120″
- Inside Hose Diameter 1/4″
- Outside Jacket Diameter 0.53″
- Fittings 1/4″ NPTM
- Minimum Bend Radius 2″
- Temperature Range -40° to 250° F
- Working Pressure 3000 PSI
- Burst Pressure 12000 PSI
- Shpg. 4 Lbs.
| 1/4″ Single Wire Hydraulic Hose Clamp A2-13.5-A | 902262 |
| 1/4″ Single Wire Dual Hydraulic Hose Clamp AT2-13.5-A | 902271 |
