Description

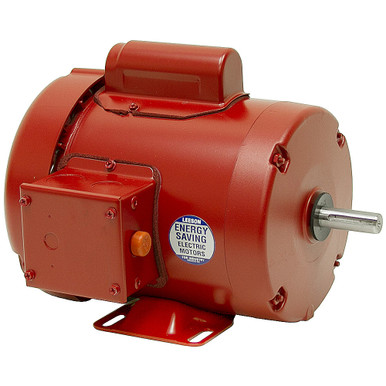

FARM DUTY MOTOR
Brand new Lesson heavy duty motor. High starting torque. Totally enclosed fan cooled with double shielded ball bearings for outdoor use. Capacitor start. Manual reset thermal overload protection.
SPECIFICATIONS
- Brand Leeson
- Model Number 110086.00
- Power 1/2 HP
- Voltage 115/230 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 8.8/4.4 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56
- Base Mount Four 0.34″ x 1.22″ elliptical slots on 3″ x 4.88″ centers
- Shaft 0.625″ dia. x 1.94″ overall length w/ 0.19″ wide x 1.38″ long keyway
- Size 10.98″ x 8.64″ x 8.37″
- Shpg. 25 lbs.
