Description

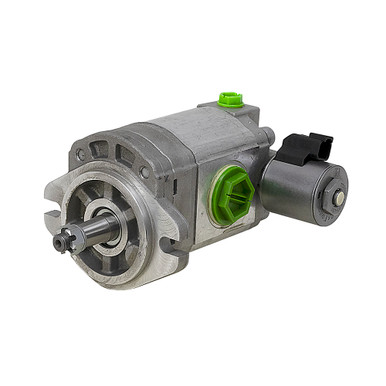

1.16 cu in CASAPPA HYDRAULIC MOTOR
New Casappa PLM20.19L5-1US9-LOD/OF-EL-N-PV-03-PRV-1-B-207-D/V9 C hydraulic motor with aluminium housing and end plates. Includes 12 volt DC solenoid bypass valve. 12 volt DC coil is HydraForce model 4303712 with Deutsch connector.
SPECIFICATIONS
- Brand Casappa
- Model PLM20.19L5-1US9-LOD/OF-EL-N-PV-03-PRV-1-B-207-D/V9 C
- Family Polaris 20
- Displacement 1.16 cu. in. / rev.
- Motor Type Gear
- Rotation CCW
- Pressure:
2900 PSI cont.
3190 PSI int. - Torque:
535 in-lbs. cont. calculated
589 in-lbs. int. calculated - Speed:
500 RPM min.
3000 RPM max. - Flow:
2.6 GPM min.
15.9 GPM max. - Mount 2 bolt SAE A
- Shaft 3/4″ tapered x 1-7/8″ long w/ 3/16″ keyway, threaded 1/2″-20 TPI w/ castle nut
- Inlet Port SAE 12
- Outlet Port SAE 16
- Case Drain SAE 4
- Size 8.25″ x 6.5″ x 3.875″
- Shpg. 12 lbs.
