Sale!

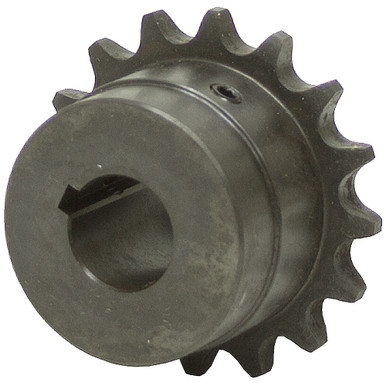

1.125" (1-1/8") Bore Coupler Sprocket 40 Pitch 16 Tooth

1.125″ (1-1/8″) Bore Coupler Sprocket 40 Pitch 16 Tooth

Original price was: $18.05.Current price is: $5.42.

SKU: 602836 Category:

Description

DOUBLE ROLLER CHAIN COUPLER SPROCKET HALF
Brand new. Double roller chain coupler sprocket half. Three piece chain coupler consist of two sprockets connected together with double roller chain. Sold as individual halves and chain. Purchase two halves and one coupler chain to make a complete coupling. For reversing operation, shock, pulsating loads or other severe operating conditions select the next larger coupling size. Furnished with standard keyway and setscrew.

SPECIFICATIONS

  • Pitch 40
  • Sprocket Teeth 16
  • Bore 1-1/8″ dia. w/ 1/4″ keyway
  • Max. Speed 5000 RPM
  • Max. Torque 80.5 ft.-lbs.
  • Max. HP @ Speed 73.6 HP @ 4800 RPM
  • Size 3.03″ dia. x 1.58″
  • Shpg. 1.5 lbs.
Chain Coupling Options. This item requires two sprock halves and one chain. Chain Cover optional Coupler Chain and Cover for Chain Coupler
5/8″ Bore Coupler Sprocket 40 Pitch 16 Tooth 602832
3/4″ Bore Coupler Sprocket 40 Pitch 16 Tooth 602833
7/8″ Bore Coupler Sprocket 40 Pitch 16 Tooth 602834
1″ Bore Coupler Sprocket 40 Pitch 16 Tooth 602835
40 Pitch 16 Tooth Coupler Chain 4016-2RC 602837
40 Pitch 16 Tooth Coupling Cover 4016-CC 602838
