Description

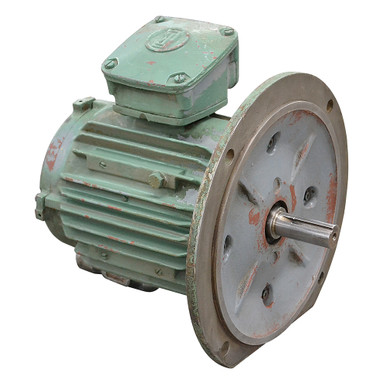

1-1/2 HP 1710 RPM 550 VOLT AC ENGLISH ELECTRIC MOTOR
Removed from service, English Electric model D182D/1354.
SPECIFICATIONS
- Brand English Electric
- Model Number D182D/1354
- Power 1-1/2 HP
- Voltage 550 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 1.9 Amps
- Speed 1710 RPM
- Rotation Reversible
- Bearings Ball
- Enclosure TENV
- Duty Continuous
- Face Mount Four 1/2″ holes on 7″ centers
- Shaft 7/8″ dia. x 2-1/4″ overall length w/ 5mm wide keyway
- Size 9.5″ x 11″ x 11.25″
- Shpg. 58 lbs.
