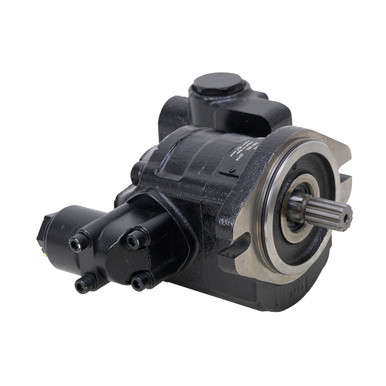

1.03 CU IN MANITOU BY CASAPPA 03564KW0 734656 HYDRAULIC PUMP
New, Casappa 03564KW0 734656 hydraulic gear pump with load sensing valve.
SPECIFICATIONS
- Manufacturer Manitou Casappa
- Model 03564KW0 734656
- Disp. 1.03 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
3770 PSI Cont.
4206 PSI Int. - Speed:
350 RPM min.
3500 RPM max. - Flow:
1.56 GPM @ 350 RPM
15.61 GPM @ 3500 RPM - LS Valve Stand by Pressure 116 PSI
- Mount 2 Bolt SAE A
- Shaft 17mm dia. 10T spline
- Rqd. Filtration 10 micron
- Inlet Port 3/4″ NPT
- CF Outlet Port M16 x 1.5 O-ring
- EF Outlet Port M18 x 1.5 O-ring
- LS Port M16 x 1.5 w/ male M16 x 1.5 adaptor
- Size 9″ x 4.75″ x 7.5″
- Shpg. 21 lbs.
