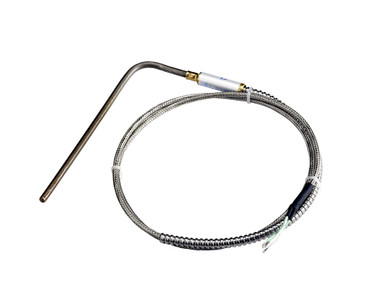

087U4042 Danfoss Temperature sensor, MBT 5111

087U4042 Danfoss Temperature sensor, MBT 5111

Original price was: $379.50.Current price is: $75.90.

SKU: 087U4042 Category: Tag:

Description

Product details

Gross weight 0.25 kg
Net weight 0.25 kg
EAN 5702423232963
Gross weight 0.25 kg
Net weight 0.25 kg
EAN 5702423232963



Ambient temperature max. [°C] 200 °C
Ambient temperature max. [°F] 392 °F
Cable length [in] 157.48 in
Cable length [m] 4 m
Cable tempr. range [°C] [Max] 260 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 500 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type PFA TC, screened
Electrical connection size 2 wire
Enclosure rating IP IP65
Extension length [in] 8.46 in
Extension length [mm] 215 mm
Insertion length [in] 6.89 in
Insertion length [mm] 175 mm
Output signal mV
Packing format Multi pack
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.24 in
Protection tube diameter [mm] 6 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Fixed
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5111
Type designation 00 MBT 5111-0101-0175-000-1
01 -0400-002-0000
Ambient temperature max. [°C] 200 °C
Ambient temperature max. [°F] 392 °F
Cable length [in] 157.48 in
Cable length [m] 4 m
Cable tempr. range [°C] [Max] 260 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 500 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type PFA TC, screened
Electrical connection size 2 wire
Enclosure rating IP IP65
Extension length [in] 8.46 in
Extension length [mm] 215 mm
Insertion length [in] 6.89 in
Insertion length [mm] 175 mm
Output signal mV
Packing format Multi pack
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.24 in
Protection tube diameter [mm] 6 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Fixed
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5111
Type designation 00 MBT 5111-0101-0175-000-1
01 -0400-002-0000

Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 800, Insertion length [mm]: 175, Protection tube material: AISI 316 Ti, Electrical connection size: 2 wire
