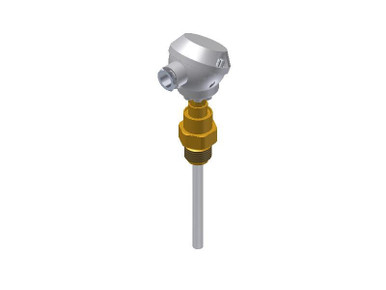

084Z3059 Danfoss Temperature sensor, MBT 5310

084Z3059 Danfoss Temperature sensor, MBT 5310

Original price was: $379.50.Current price is: $75.90.

SKU: 084Z3059 Category: Tag:

Description

Product details

Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423222360
Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423222360



Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection material Brass
Connection standard ISO 228
Connection type G
Electrical connection Type B mini
Electrical connection size Pg 9
Enclosure rating IP IP65
Insertion length [in] [Max] 3.93 in
Insertion length [in] [Min] 3.35 in
Insertion length [mm] [Max] 100 mm
Insertion length [mm] [Min] 85 mm
Insertion type Variable
Number of terminals [pcs] 2 pc
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Brass
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 2 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 5310
Type designation MBT 5310-10-100-620
Wires [pcs] 2 pc
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection material Brass
Connection standard ISO 228
Connection type G
Electrical connection Type B mini
Electrical connection size Pg 9
Enclosure rating IP IP65
Insertion length [in] [Max] 3.93 in
Insertion length [in] [Min] 3.35 in
Insertion length [mm] [Max] 100 mm
Insertion length [mm] [Min] 85 mm
Insertion type Variable
Number of terminals [pcs] 2 pc
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Brass
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 2 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 5310
Type designation MBT 5310-10-100-620
Wires [pcs] 2 pc

Process Connections: G1/2 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Insertion length [mm]: 85 – 100, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B mini, Electrical connection size: Pg 9

Product details

Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423222360
Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423222360



Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection material Brass
Connection standard ISO 228
Connection type G
Electrical connection Type B mini
Electrical connection size Pg 9
Enclosure rating IP IP65
Insertion length [in] [Max] 3.93 in
Insertion length [in] [Min] 3.35 in
Insertion length [mm] [Max] 100 mm
Insertion length [mm] [Min] 85 mm
Insertion type Variable
Number of terminals [pcs] 2 pc
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Brass
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 2 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 5310
Type designation MBT 5310-10-100-620
Wires [pcs] 2 pc
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection material Brass
Connection standard ISO 228
Connection type G
Electrical connection Type B mini
Electrical connection size Pg 9
Enclosure rating IP IP65
Insertion length [in] [Max] 3.93 in
Insertion length [in] [Min] 3.35 in
Insertion length [mm] [Max] 100 mm
Insertion length [mm] [Min] 85 mm
Insertion type Variable
Number of terminals [pcs] 2 pc
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Brass
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 2 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 5310
Type designation MBT 5310-10-100-620
Wires [pcs] 2 pc
