Sale!

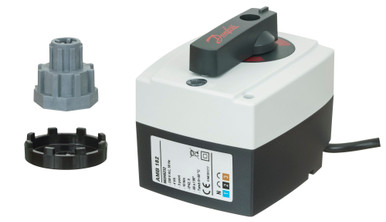

082H0238 Danfoss AMB 182

082H0238 Danfoss AMB 182

Original price was: $455.39.Current price is: $91.08.

SKU: 082H0238 Category: Tag:

Description

Product details

Gross weight 0.74 kg
Net weight 0.66 kg
EAN 5710104078069
Gross weight 0.74 kg
Net weight 0.66 kg
EAN 5710104078069



Actuator speed [s/°] 240 s/°
Actuator type Electrical
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Application temperature control in central heating
Control signal type 3-point
AMB 182 15Nm 3p 240s 230V
Frequency [Hz] 50/60
Grade of enclosure IP42
Manual operation Yes
Operating torque [Nm] 15 N-m
Power consumption [W] 4 W
Product group Electrical actuators
Protection class II
Rotation angle [°] 90 °
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 80 °C
Storage temperature [°C] [Min] -10 °C
Supply voltage range [V] AC 230 V
Type AMB 182
Actuator speed [s/°] 240 s/°
Actuator type Electrical
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Application temperature control in central heating
Control signal type 3-point
AMB 182 15Nm 3p 240s 230V
Frequency [Hz] 50/60
Grade of enclosure IP42
Manual operation Yes
Operating torque [Nm] 15 N-m
Power consumption [W] 4 W
Product group Electrical actuators
Protection class II
Rotation angle [°] 90 °
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 80 °C
Storage temperature [°C] [Min] -10 °C
Supply voltage range [V] AC 230 V
Type AMB 182

AMB 182 15Nm 3p 240s 230V

Product details

Gross weight 0.74 kg
Net weight 0.66 kg
EAN 5710104078069
Gross weight 0.74 kg
Net weight 0.66 kg
EAN 5710104078069



Actuator speed [s/°] 240 s/°
Actuator type Electrical
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Application temperature control in central heating
Control signal type 3-point
AMB 182 15Nm 3p 240s 230V
Frequency [Hz] 50/60
Grade of enclosure IP42
Manual operation Yes
Operating torque [Nm] 15 N-m
Power consumption [W] 4 W
Product group Electrical actuators
Protection class II
Rotation angle [°] 90 °
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 80 °C
Storage temperature [°C] [Min] -10 °C
Supply voltage range [V] AC 230 V
Type AMB 182
Actuator speed [s/°] 240 s/°
Actuator type Electrical
Ambient temperature [°C] [Max] 50 °C
Ambient temperature [°C] [Min] 0 °C
Application temperature control in central heating
Control signal type 3-point
AMB 182 15Nm 3p 240s 230V
Frequency [Hz] 50/60
Grade of enclosure IP42
Manual operation Yes
Operating torque [Nm] 15 N-m
Power consumption [W] 4 W
Product group Electrical actuators
Protection class II
Rotation angle [°] 90 °
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 80 °C
Storage temperature [°C] [Min] -10 °C
Supply voltage range [V] AC 230 V
Type AMB 182
