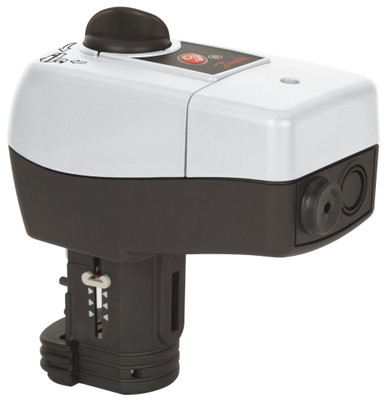

082H0161 Danfoss AME 435

082H0161 Danfoss AME 435

Original price was: $535.03.Current price is: $107.01.

SKU: 082H0161 Category: Tag:

Description

Product details

Gross weight 0.73 kg
Net weight 0.58 kg
EAN 5710104006284
Gross weight 0.73 kg
Net weight 0.58 kg
EAN 5710104006284



Actuator speed [s/mm] 8 s/mm
15 s/mm
Actuator type Electrical
Ambient temperature [°C] [Max] 55 °C
Ambient temperature [°C] [Min] 0 °C
Application HVAC
Closing force [N] 400 N
Control input signal Y [mA] 0(4) – 20 mA
Control input signal Y [mA], impedance [Ohm] 500 Ohm
Control input signal Y [V] 0(2) – 10 V
Control input signal Y [V], impedance [kOhm] 95 kOhm
Control signal type Modulating
AME 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure IP54
Manual operation Yes
Manufacturer’s name Danfoss
Position feedback yes
Power consumption [W] 5 W
Product group Electrical actuators
Protection class II
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 70 °C
Storage temperature [°C] [Min] -40 °C
Stroke [mm] 20 mm
Supply voltage range [V] AC 24 V
Supply voltage range [V] DC 24 V
Type AME 435
Actuator speed [s/mm] 8 s/mm
15 s/mm
Actuator type Electrical
Ambient temperature [°C] [Max] 55 °C
Ambient temperature [°C] [Min] 0 °C
Application HVAC
Closing force [N] 400 N
Control input signal Y [mA] 0(4) – 20 mA
Control input signal Y [mA], impedance [Ohm] 500 Ohm
Control input signal Y [V] 0(2) – 10 V
Control input signal Y [V], impedance [kOhm] 95 kOhm
Control signal type Modulating
AME 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure IP54
Manual operation Yes
Manufacturer’s name Danfoss
Position feedback yes
Power consumption [W] 5 W
Product group Electrical actuators
Protection class II
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 70 °C
Storage temperature [°C] [Min] -40 °C
Stroke [mm] 20 mm
Supply voltage range [V] AC 24 V
Supply voltage range [V] DC 24 V
Type AME 435

AME 43524V 7,5-15s/mm 20mm 400N

Product details

Gross weight 0.73 kg
Net weight 0.58 kg
EAN 5710104006284
Gross weight 0.73 kg
Net weight 0.58 kg
EAN 5710104006284



Actuator speed [s/mm] 8 s/mm
15 s/mm
Actuator type Electrical
Ambient temperature [°C] [Max] 55 °C
Ambient temperature [°C] [Min] 0 °C
Application HVAC
Closing force [N] 400 N
Control input signal Y [mA] 0(4) – 20 mA
Control input signal Y [mA], impedance [Ohm] 500 Ohm
Control input signal Y [V] 0(2) – 10 V
Control input signal Y [V], impedance [kOhm] 95 kOhm
Control signal type Modulating
AME 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure IP54
Manual operation Yes
Manufacturer’s name Danfoss
Position feedback yes
Power consumption [W] 5 W
Product group Electrical actuators
Protection class II
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 70 °C
Storage temperature [°C] [Min] -40 °C
Stroke [mm] 20 mm
Supply voltage range [V] AC 24 V
Supply voltage range [V] DC 24 V
Type AME 435
Actuator speed [s/mm] 8 s/mm
15 s/mm
Actuator type Electrical
Ambient temperature [°C] [Max] 55 °C
Ambient temperature [°C] [Min] 0 °C
Application HVAC
Closing force [N] 400 N
Control input signal Y [mA] 0(4) – 20 mA
Control input signal Y [mA], impedance [Ohm] 500 Ohm
Control input signal Y [V] 0(2) – 10 V
Control input signal Y [V], impedance [kOhm] 95 kOhm
Control signal type Modulating
AME 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure IP54
Manual operation Yes
Manufacturer’s name Danfoss
Position feedback yes
Power consumption [W] 5 W
Product group Electrical actuators
Protection class II
Safety function 0
Speed type Standard
Spring down (return) No
Spring up No
Storage temperature [°C] [Max] 70 °C
Storage temperature [°C] [Min] -40 °C
Stroke [mm] 20 mm
Supply voltage range [V] AC 24 V
Supply voltage range [V] DC 24 V
Type AME 435
