Description
Product details
| Gross weight |
2.02 kg |
| Net weight |
1.91 kg |
| Gross weight |
2.02 kg |
| Net weight |
1.91 kg |
| EAN |
5710104080086 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 1 |
| Connection types |
Internal thread |
|

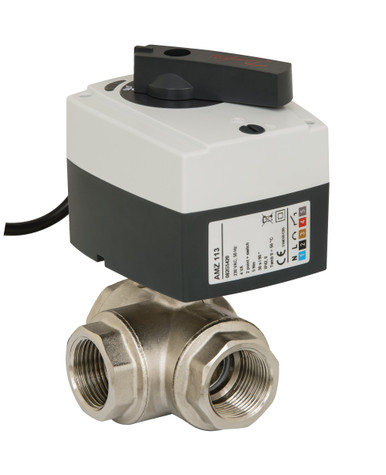

AMZ 113 ON/OFF 3-w int th 230V DN25 |
| Diameter [mm] |
25 mm |
| Kvs values [m³/h] |
13 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
3 |
| Operating torque [Nm] |
15 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 113 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 1 |
| Connection types |
Internal thread |
|
AMZ 113 ON/OFF 3-w int th 230V DN25 |
| Diameter [mm] |
25 mm |
| Kvs values [m³/h] |
13 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
3 |
| Operating torque [Nm] |
15 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 113 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
AMZ 113 ON/OFF 3-w int th 230V DN25
Product details
| Gross weight |
2.02 kg |
| Net weight |
1.91 kg |
| Gross weight |
2.02 kg |
| Net weight |
1.91 kg |
| EAN |
5710104080086 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 1 |
| Connection types |
Internal thread |
|
AMZ 113 ON/OFF 3-w int th 230V DN25 |
| Diameter [mm] |
25 mm |
| Kvs values [m³/h] |
13 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
3 |
| Operating torque [Nm] |
15 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 113 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 1 |
| Connection types |
Internal thread |
|
AMZ 113 ON/OFF 3-w int th 230V DN25 |
| Diameter [mm] |
25 mm |
| Kvs values [m³/h] |
13 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
3 |
| Operating torque [Nm] |
15 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 113 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
