Description
Product details
| Gross weight | 9.69 kg |
| Net weight | 9.69 kg |
| EAN | 5710104037370 |
| Gross weight | 9.69 kg |
| Net weight | 9.69 kg |
| EAN | 5710104037370 |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| AME 658 SU 24V | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 19 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | Yes |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage range [V] AC | 24 V |
| Supply voltage range [V] DC | 24 V |
| Type | AME 658 SU |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| AME 658 SU 24V | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 19 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | Yes |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage range [V] AC | 24 V |
| Supply voltage range [V] DC | 24 V |
| Type | AME 658 SU |

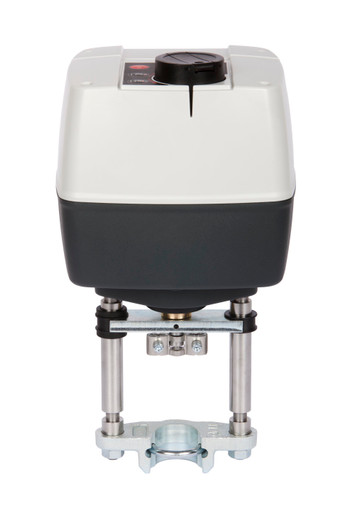

AME 658 SU 24V
Product details
| Gross weight | 9.69 kg |
| Net weight | 9.69 kg |
| EAN | 5710104037370 |
| Gross weight | 9.69 kg |
| Net weight | 9.69 kg |
| EAN | 5710104037370 |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| AME 658 SU 24V | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 19 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | Yes |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage range [V] AC | 24 V |
| Supply voltage range [V] DC | 24 V |
| Type | AME 658 SU |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| AME 658 SU 24V | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 19 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | Yes |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage range [V] AC | 24 V |
| Supply voltage range [V] DC | 24 V |
| Type | AME 658 SU |
