Description
Product details
| Gross weight | 6.08 kg |
| Net weight | 6.08 kg |
| EAN | 5710104009186 |
| Gross weight | 6.08 kg |
| Net weight | 6.08 kg |
| EAN | 5710104009186 |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Closing differential pressure (diverting) [bar] [Max] | 1 bar |
| Closing differential pressure (mixing) [bar] [Max] | 4 bar |
| Connection types | Flange |
| Control ratio | 100:1 |
| VL3 DN32/16 PN6 flange | |
| Diameter [mm] | 32 mm |
| Flow characteristic | Equal percentage |
| Function | Mixing valve |
| Kvs values [m³/h] | 16 m3/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | bubble tight design |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 3 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 6 bar |
| Product group | Motorized control valves |
| Stroke [mm] | 15 mm |
| Stuffing box sealing material | EPDM |
| Type | VL 3 |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Brass |
| Valve stem material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Closing differential pressure (diverting) [bar] [Max] | 1 bar |
| Closing differential pressure (mixing) [bar] [Max] | 4 bar |
| Connection types | Flange |
| Control ratio | 100:1 |
| VL3 DN32/16 PN6 flange | |
| Diameter [mm] | 32 mm |
| Flow characteristic | Equal percentage |
| Function | Mixing valve |
| Kvs values [m³/h] | 16 m3/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | bubble tight design |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 3 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 6 bar |
| Product group | Motorized control valves |
| Stroke [mm] | 15 mm |
| Stuffing box sealing material | EPDM |
| Type | VL 3 |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Brass |
| Valve stem material | Stainless steel |

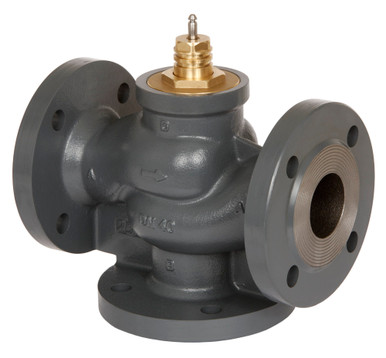

VL3DN32/16 PN6 flange
