Description
Product details
| Gross weight | 43 kg |
| Net weight | 42.3 kg |
| EAN | 5702425114229 |
| Gross weight | 43 kg |
| Net weight | 42.3 kg |
| EAN | 5702425114229 |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Cone /seat sealing material | PTFE+C |
| Connection types | Welded / Welded |
| JIP-WW DN200 BR PN25 L390 | |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Function | On/off |
| Kvs values [m³/h] | 2300 m3/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 390 mm |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 9 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | HEX 27/60 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Ball valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | EPDM |
| Storage temperature [°C] [Min] | -40 °C |
| Type | JIP-WW, Branching |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Reduced Bore |
| Welding ends material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Cone /seat sealing material | PTFE+C |
| Connection types | Welded / Welded |
| JIP-WW DN200 BR PN25 L390 | |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Function | On/off |
| Kvs values [m³/h] | 2300 m3/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 390 mm |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 9 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | HEX 27/60 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Ball valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | EPDM |
| Storage temperature [°C] [Min] | -40 °C |
| Type | JIP-WW, Branching |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Reduced Bore |
| Welding ends material | Weldable steel* e.g. P235GH / Mat. no. 1.0345 |

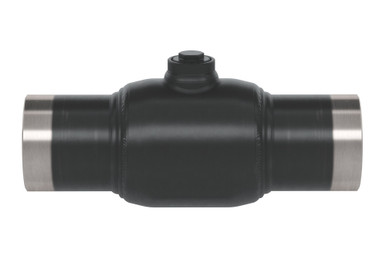

JIP-WW DN200 BR PN25 L390
