Description
Product details
| Gross weight | 75.2 kg |
| Net weight | 65 kg |
| EAN | 5702421510988 |
| Gross weight | 75.2 kg |
| Net weight | 65 kg |
| EAN | 5702421510988 |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Connection types | Flange |
| Control ratio | 100:1 |
| VF 2 PN16 150/320 2-way seated flange | |
| Diameter [mm] | 150 mm |
| Differential pressure range [bar] [Max] | 1.5 bar |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 320 m3/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Stroke [mm] | 40 mm |
| Stuffing box sealing material | PFTE |
| Type | VF 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | GGG 40 |
| Valve stem material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Connection types | Flange |
| Control ratio | 100:1 |
| VF 2 PN16 150/320 2-way seated flange | |
| Diameter [mm] | 150 mm |
| Differential pressure range [bar] [Max] | 1.5 bar |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 320 m3/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Stroke [mm] | 40 mm |
| Stuffing box sealing material | PFTE |
| Type | VF 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | GGG 40 |
| Valve stem material | Stainless steel |

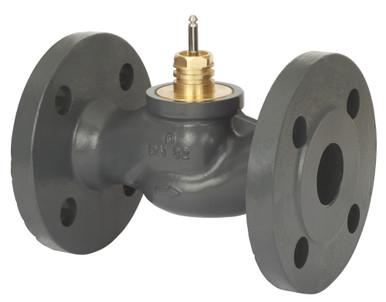

VF 2 PN16 150/320 2-way seated flange
