Description
Product details
| Gross weight | 46.8 kg |
| Net weight | 46.8 kg |
| EAN | 5702421805206 |
| Gross weight | 46.8 kg |
| Net weight | 46.8 kg |
| EAN | 5702421805206 |
| Application | District Heating |
| Cavitation factor | 0.45 |
| Connection types | Flange |
| Control ratio | 1:50 |
| VFG33 PN16 80/80 3-way flange flow/ret | |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Function | Pressure relief |
| Function 2 | Mixing valve |
| Kvs values [m³/h] | 80 m3/h |
| Leakage bypass port max. [% Kvs] | 0.05 % |
| Leakage through port max. [% Kvs] | 0.05 |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 16 mm |
| Type | VFG 33 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Application | District Heating |
| Cavitation factor | 0.45 |
| Connection types | Flange |
| Control ratio | 1:50 |
| VFG33 PN16 80/80 3-way flange flow/ret | |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Function | Pressure relief |
| Function 2 | Mixing valve |
| Kvs values [m³/h] | 80 m3/h |
| Leakage bypass port max. [% Kvs] | 0.05 % |
| Leakage through port max. [% Kvs] | 0.05 |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 16 mm |
| Type | VFG 33 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |

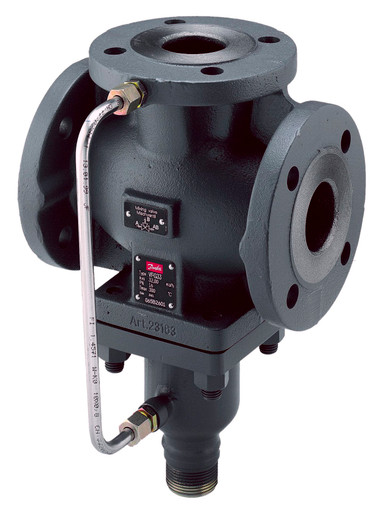

VFG33 PN16 80/80 3-way flange flow/ret
