Description
Product details
| Gross weight |
6.57 kg |
| Net weight |
6.27 kg |
| Gross weight |
6.57 kg |
| Net weight |
6.27 kg |
| EAN |
5702421803066 |
| Application |
District Heating |
| Cavitation factor |
0.6 |
| Connection types |
Flange |
|

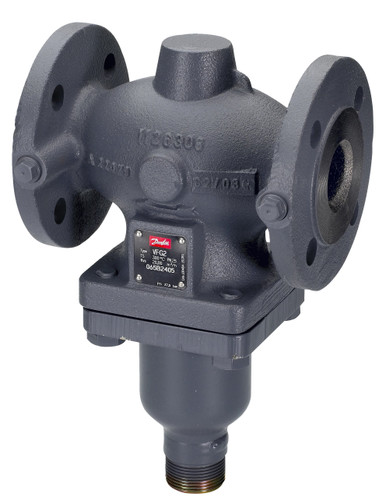

VFG2 PN16 20/6,3 2-way flange flow/ret |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
16 bar |
| Flow characteristic |
Linear optimized |
| Function |
Pressure relief |
| Kvs values [m³/h] |
6.3 m3/h |
| Leakage through port max. [% Kvs] |
0.03 |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
200 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Glycolic water up to 30% |
| Mounting version |
Free |
| Number of ports |
2 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
16 bar |
| Product group |
Motorized control valves |
| Spindle position |
Normally open |
| Stroke [mm] |
6 mm |
| Type |
VFG 2 |
| Valve body material |
Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material |
Stainless steel, mat. No. 1.4404 |
| Valve seat material |
Stainless steel, mat. No. 1.4021 |
| Application |
District Heating |
| Cavitation factor |
0.6 |
| Connection types |
Flange |
|
VFG2 PN16 20/6,3 2-way flange flow/ret |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
16 bar |
| Flow characteristic |
Linear optimized |
| Function |
Pressure relief |
| Kvs values [m³/h] |
6.3 m3/h |
| Leakage through port max. [% Kvs] |
0.03 |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
200 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Glycolic water up to 30% |
| Mounting version |
Free |
| Number of ports |
2 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
16 bar |
| Product group |
Motorized control valves |
| Spindle position |
Normally open |
| Stroke [mm] |
6 mm |
| Type |
VFG 2 |
| Valve body material |
Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material |
Stainless steel, mat. No. 1.4404 |
| Valve seat material |
Stainless steel, mat. No. 1.4021 |
