Description
Product details
| Gross weight |
3.84 kg |
| Net weight |
3.62 kg |
| Gross weight |
3.84 kg |
| Net weight |
3.62 kg |
| EAN |
5702421512760 |
| Application |
Steam |
| Application alternative VSP |
Chilled water |
| Connection types |
Flange |
| Control ratio |
50:1 |
|

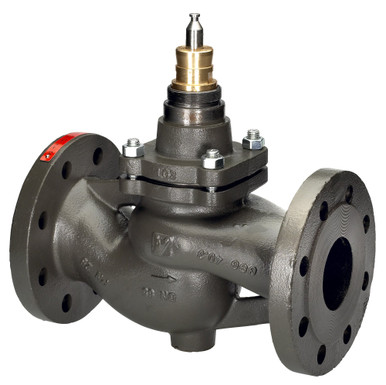

VFS 2 PN25 15/2,5 2-way seated flange |
| Diameter [mm] |
15 mm |
| Differential pressure range [bar] [Max] |
25 bar |
| Flow characteristic |
Equal percentage |
| Kvs values [m³/h] |
2.5 m3/h |
| Leakage through port max. [% Kvs] |
0.05 |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
200 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Medium alternative 2 |
Steam |
| Number of ports |
2 |
| Permissible media |
Circulation water |
| PN alternative VSP |
16 |
| Pressure nominal [bar] |
25 bar |
| Product group |
Motorized control valves |
| Stroke [mm] |
15 mm |
| Type |
VFS 2 |
| Valve body material |
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material |
Stainless steel |
| Application |
Steam |
| Application alternative VSP |
Chilled water |
| Connection types |
Flange |
| Control ratio |
50:1 |
|
VFS 2 PN25 15/2,5 2-way seated flange |
| Diameter [mm] |
15 mm |
| Differential pressure range [bar] [Max] |
25 bar |
| Flow characteristic |
Equal percentage |
| Kvs values [m³/h] |
2.5 m3/h |
| Leakage through port max. [% Kvs] |
0.05 |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
200 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Medium alternative 2 |
Steam |
| Number of ports |
2 |
| Permissible media |
Circulation water |
| PN alternative VSP |
16 |
| Pressure nominal [bar] |
25 bar |
| Product group |
Motorized control valves |
| Stroke [mm] |
15 mm |
| Type |
VFS 2 |
| Valve body material |
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material |
Stainless steel |
