Description
Product details
| Gross weight |
3.35 kg |
| Net weight |
3.35 kg |
| Gross weight |
3.35 kg |
| Net weight |
3.35 kg |
| EAN |
5702421805718 |
| Actuator size [cm2] |
31 mm2 |
| Application |
District Heating |
| Connection types |
Ext. thread |
|
V74D52 PN25 20/6,3 1,0-5,5 thr flo/ret |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
12 bar |
| Flow control |
No |
| Flow limitation |
No |
| Flow rate [m3/h] |
0 m3/h |
| Flow rate [m3/h] [Max] |
0 m3/h |
| Function |
Press. reduction controller |
| Function VSP – P |
Yes |
| Function VSP – Q |
No |
| Function VSP – T |
No |
| Kvs values [m³/h] |
6.3 m3/h |
| Leakage rate [% Kvs] |
0.02 |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
130 °C |
| Mounting version |
Free |
| Number of ports |
2 |
| Permissible media |
Thermo oil |
| Pressure controller |
Pressure reduction controller |
| Pressure nominal [bar] |
25 bar |
| Product group |
Pressure flow controllers |
| Setting type |
Adjustable |
| Type |
V74D52 |
| Valve body material |
Red bronze CuSn5ZnPb (Rg5) |
| Actuator size [cm2] |
31 mm2 |
| Application |
District Heating |
| Connection types |
Ext. thread |
|
V74D52 PN25 20/6,3 1,0-5,5 thr flo/ret |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
12 bar |
| Flow control |
No |
| Flow limitation |
No |
| Flow rate [m3/h] |
0 m3/h |
| Flow rate [m3/h] [Max] |
0 m3/h |
| Function |
Press. reduction controller |
| Function VSP – P |
Yes |
| Function VSP – Q |
No |
| Function VSP – T |
No |
| Kvs values [m³/h] |
6.3 m3/h |
| Leakage rate [% Kvs] |
0.02 |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
130 °C |
| Mounting version |
Free |
| Number of ports |
2 |
| Permissible media |
Thermo oil |
| Pressure controller |
Pressure reduction controller |
| Pressure nominal [bar] |
25 bar |
| Product group |
Pressure flow controllers |
| Setting type |
Adjustable |
| Type |
V74D52 |
| Valve body material |
Red bronze CuSn5ZnPb (Rg5) |

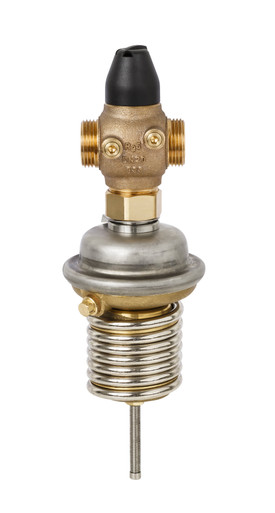

V74D52PN25 20/6,3 1,0-5,5 thr flo/ret
