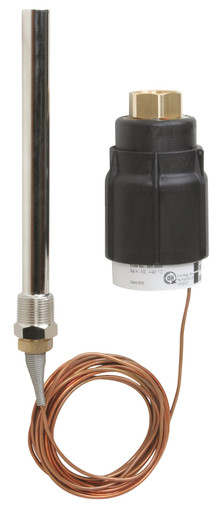

065-0598 Danfoss AVT

065-0598 Danfoss AVT

Original price was: $1,265.15.Current price is: $253.03.

SKU: 065-0598 Category: Tag:

Description

Product details

Gross weight 1.38 kg
Net weight 1.14 kg
EAN 5702421544211
Gross weight 1.38 kg
Net weight 1.14 kg
EAN 5702421544211



Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m] 5 m
AVT PN25 40-90/5m 170mm R1/2 Brass pck
Function Temp. controller
Gain Ks 0.2
Impulse tube material Copper mat. No 2.0090
Manufacturer’s name Danfoss
Media temperature at sensor [°C] [Max] 140 °C
Mounting version Free
Product group Actuators – Temperature
Sensor connection M14x1 / R1/2 ext thread acc. DIN 2999
Sensor pocket length [mm] 170 mm
Sensor pocket material Brass
Temperature sensor diameter [mm] 9.5 mm
Temperature sensor length [mm] 170 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 90 °C
Temperature setting range [°C] [Min] 40 °C
Time constant [sec] 50 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVT
Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m] 5 m
AVT PN25 40-90/5m 170mm R1/2 Brass pck
Function Temp. controller
Gain Ks 0.2
Impulse tube material Copper mat. No 2.0090
Manufacturer’s name Danfoss
Media temperature at sensor [°C] [Max] 140 °C
Mounting version Free
Product group Actuators – Temperature
Sensor connection M14x1 / R1/2 ext thread acc. DIN 2999
Sensor pocket length [mm] 170 mm
Sensor pocket material Brass
Temperature sensor diameter [mm] 9.5 mm
Temperature sensor length [mm] 170 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 90 °C
Temperature setting range [°C] [Min] 40 °C
Time constant [sec] 50 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVT

AVT PN25 40-90/5m 170mm R1/2 Brass pck

Product details

Gross weight 1.38 kg
Net weight 1.14 kg
EAN 5702421544211
Gross weight 1.38 kg
Net weight 1.14 kg
EAN 5702421544211



Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m] 5 m
AVT PN25 40-90/5m 170mm R1/2 Brass pck
Function Temp. controller
Gain Ks 0.2
Impulse tube material Copper mat. No 2.0090
Manufacturer’s name Danfoss
Media temperature at sensor [°C] [Max] 140 °C
Mounting version Free
Product group Actuators – Temperature
Sensor connection M14x1 / R1/2 ext thread acc. DIN 2999
Sensor pocket length [mm] 170 mm
Sensor pocket material Brass
Temperature sensor diameter [mm] 9.5 mm
Temperature sensor length [mm] 170 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 90 °C
Temperature setting range [°C] [Min] 40 °C
Time constant [sec] 50 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVT
Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m] 5 m
AVT PN25 40-90/5m 170mm R1/2 Brass pck
Function Temp. controller
Gain Ks 0.2
Impulse tube material Copper mat. No 2.0090
Manufacturer’s name Danfoss
Media temperature at sensor [°C] [Max] 140 °C
Mounting version Free
Product group Actuators – Temperature
Sensor connection M14x1 / R1/2 ext thread acc. DIN 2999
Sensor pocket length [mm] 170 mm
Sensor pocket material Brass
Temperature sensor diameter [mm] 9.5 mm
Temperature sensor length [mm] 170 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 90 °C
Temperature setting range [°C] [Min] 40 °C
Time constant [sec] 50 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVT
