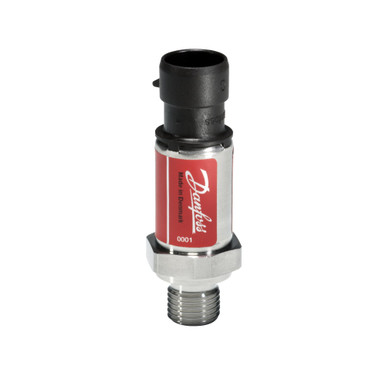

064G1136 Danfoss Pressure transmitter, MBS 8250

064G1136 Danfoss Pressure transmitter, MBS 8250

Original price was: $279.08.Current price is: $69.77.

SKU: 064G1136 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428927611
Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428927611



+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] -20 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] -4 °F
Electrical conn. Male/Female Male
Electrical connection Round Packard Metri-Pack
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Identical product 064G4032
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 960 bar
Overload pressure max. [psi] 13924 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard ISO 11926
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 159 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 2306.1 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-9716-C2BC08-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] -20 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] -4 °F
Electrical conn. Male/Female Male
Electrical connection Round Packard Metri-Pack
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Identical product 064G4032
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 960 bar
Overload pressure max. [psi] 13924 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard ISO 11926
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 159 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 2306.1 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-9716-C2BC08-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250

Product name: Pressure transmitter, Type: MBS 8250, Pressure range [psi]: -14.50 – 2306.10, Pressure range [bar]: -1.00 – 159.00, Pressure connection size: 7/16-20, Pressure connection type: UNF, Electrical connection size: 3 pin, Electrical connection: Round Packard Metri-Pack

Product details

Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428927611
Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428927611



+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] -20 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] -4 °F
Electrical conn. Male/Female Male
Electrical connection Round Packard Metri-Pack
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Identical product 064G4032
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 960 bar
Overload pressure max. [psi] 13924 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard ISO 11926
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 159 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 2306.1 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-9716-C2BC08-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] -20 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] -4 °F
Electrical conn. Male/Female Male
Electrical connection Round Packard Metri-Pack
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Identical product 064G4032
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 960 bar
Overload pressure max. [psi] 13924 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard ISO 11926
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 159 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 2306.1 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-9716-C2BC08-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
