Description
Product details
| Gross weight |
0.34 kg |
| Net weight |
0.12 kg |
| Gross weight |
0.34 kg |
| Net weight |
0.12 kg |
| EAN |
5702428941648 |
| + output |
Pin 3 |
| + supply |
Pin 1 |
| – common |
Pin 2 |
| Accuracy, max. +/- FS [%] |
1 % |
| Accuracy, typical +/- FS [%] |
0.5 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [Max] |
125 °C |
| Ambient temperature range [°C] [Min] |
-40 °C |
| Ambient temperature range [°F] [Max] |
257 °F |
| Ambient temperature range [°F] [Min] |
-40 °F |
| Approval |
ATEX |
| Approval comments |
ATEX Ex nA IIA T3 Gc |
| Compensated temp. range [°C] [Max] |
100 °C |
| Compensated temp. range [°C] [Min] |
0 °C |
| Compensated temp. range [°F] [Max] |
212 °F |
| Compensated temp. range [°F] [Min] |
32 °F |
| Electrical conn. Male/Female |
Male and Female |
| Electrical connection |
DIN-plug |
| Electrical connection size |
Pg 9 |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| Flush diaphragm |
No |
| Intrinsically safe |
No |
| Medium temperature range [°C] [Max] |
125 °C |
| Medium temperature range [°C] [Min] |
-40 °C |
| Medium temperature range [°F] [Max] |
257 °F |
| Medium temperature range [°F] [Min] |
-40 °F |
| Non-linearity BFSL ±FS [%] |
0.2 % |
| Overload pressure max. [bar] |
36 bar |
| Overload pressure max. [psi] |
522 psi |
| Packing format |
Multi pack |
| Pressure connection notes |
Block adapter with flange |
| Pressure connection type |
Flange |
| Pressure Male/Female |
Female |
| Pressure range [bar] [Max] |
6 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
87.02 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Absolute |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
14 pc |
| Ratiometric of Vsupply [%] [Max] |
90 % |
| Ratiometric of Vsupply [%] [Min] |
10 % |
| Response time max. [ms] |
4 ms |
| Specification key |
MBS 2100-1826-A1CD28-0 |
| Supply voltage [V] DC [Max] |
8 V |
| Supply voltage [V] DC [Min] |
4.75 V |
| Type |
MBS 2100 |
| + output |
Pin 3 |
| + supply |
Pin 1 |
| – common |
Pin 2 |
| Accuracy, max. +/- FS [%] |
1 % |
| Accuracy, typical +/- FS [%] |
0.5 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [Max] |
125 °C |
| Ambient temperature range [°C] [Min] |
-40 °C |
| Ambient temperature range [°F] [Max] |
257 °F |
| Ambient temperature range [°F] [Min] |
-40 °F |
| Approval |
ATEX |
| Approval comments |
ATEX Ex nA IIA T3 Gc |
| Compensated temp. range [°C] [Max] |
100 °C |
| Compensated temp. range [°C] [Min] |
0 °C |
| Compensated temp. range [°F] [Max] |
212 °F |
| Compensated temp. range [°F] [Min] |
32 °F |
| Electrical conn. Male/Female |
Male and Female |
| Electrical connection |
DIN-plug |
| Electrical connection size |
Pg 9 |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| Flush diaphragm |
No |
| Intrinsically safe |
No |
| Medium temperature range [°C] [Max] |
125 °C |
| Medium temperature range [°C] [Min] |
-40 °C |
| Medium temperature range [°F] [Max] |
257 °F |
| Medium temperature range [°F] [Min] |
-40 °F |
| Non-linearity BFSL ±FS [%] |
0.2 % |
| Overload pressure max. [bar] |
36 bar |
| Overload pressure max. [psi] |
522 psi |
| Packing format |
Multi pack |
| Pressure connection notes |
Block adapter with flange |
| Pressure connection type |
Flange |
| Pressure Male/Female |
Female |
| Pressure range [bar] [Max] |
6 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
87.02 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Absolute |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
14 pc |
| Ratiometric of Vsupply [%] [Max] |
90 % |
| Ratiometric of Vsupply [%] [Min] |
10 % |
| Response time max. [ms] |
4 ms |
| Specification key |
MBS 2100-1826-A1CD28-0 |
| Supply voltage [V] DC [Max] |
8 V |
| Supply voltage [V] DC [Min] |
4.75 V |
| Type |
MBS 2100 |

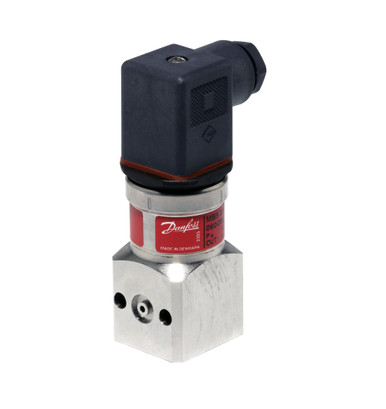

Product name: Pressure transmitter, Type: MBS 2100, Pressure range [psi]: 0.00 – 87.02, Pressure range [bar]: 0.00 – 6.00, Pressure connection type: Flange, Electrical connection size: Pg 9, Electrical connection: DIN-plug
