Description
Type Code MBS 3050 , Weight 0.148 Kg , – common PIN 2 , + output PIN 3 , + supply PIN 1 More details

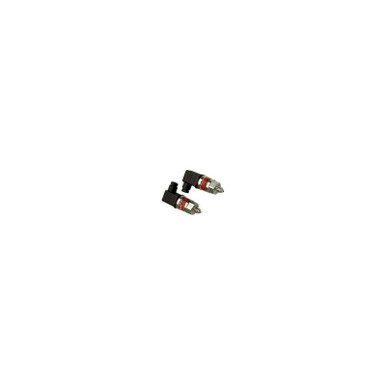

The compact heavy duty pressure transmitter MBS 3050 is designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure- and electrical connections. Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements. 4 – 20 mA output signal Operating temperature -40 to 85° C Measuring range 0 – 600 bar Standard pressure connection DIN 3852 – G 1/4A With integrated pulse-snubber Especially suited for hydraulic applications
| Type Code | MBS 3050 |
| Weight | 0.148 Kg |
| – common | PIN 2 |
| + output | PIN 3 |
| + supply | PIN 1 |
| Accuracy (max.) ±FS | 1,00 % |
| Accuracy (typ.) ±FS | 0,5 % |
| Adj. zero point/span | No |
| Ambient temp. | -40 – 85 °C |
| Ambient temp. | -40 – 185 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Comments | GASKET VITON |
| Compensated temp. range | 0 – 80 °C |
| Compensated temp. range | 32 – 176 °F |
| EAN no. | 5702423188536 |
| Electr. conn. comments | FLYING LEADS |
| Electr. conn. type | AMP SuperSeal, Male |
| Encl. | IP67 |
| Flush diaphr. | No |
| Intrins. safe | No |
| Medium temp. range | -20 – 85 °C |
| Medium temp. range | -4 – 185 °F |
| Non-linearity BFSL ±FS [%] | 0,50 % |
| Output sign. type | 0 – 5 V |
| Overload press. max. | 200,0 bar |
| Pressure conn. HEX | 27,0 |
| Pressure conn. std. | DIN 3852-E |
| Pressure conne. type | G – 1/4 Male |
| Pressure range | 0,00 – 60,00 bar |
| Press. unit ref. | Gauge (relative) |
| Pulse-snubber | Yes |
| Response time max. | 4 ms |
| Spec. key | MBS 3050-2812-8GB04 |
| Supply volt. | 15,00 – 30,00 V |
