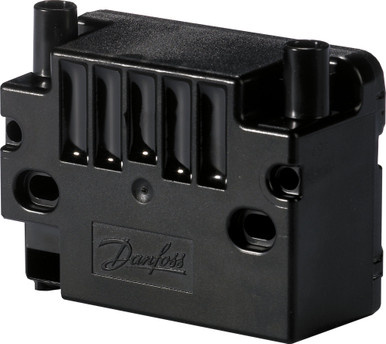

052F4046 Danfoss Ignition Units, EBI4 1P S, Secondary peak voltage [kV]: 12, 187.0 V - 255.0 V, 90.0 VA

052F4046 Danfoss Ignition Units, EBI4 1P S, Secondary peak voltage [kV]: 12, 187.0 V – 255.0 V, 90.0 VA

Original price was: $132.08.Current price is: $33.02.

SKU: 052F4046 Category: Tag:

Description

Product details

Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078149
Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078149



Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI 4 1P SERVICE 2
Grade of enclosure primary IP40
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 90 VA
Primary current [A] 0.4 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 48 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 1P S
Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI 4 1P SERVICE 2
Grade of enclosure primary IP40
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 90 VA
Primary current [A] 0.4 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 48 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 1P S

EBI 4 1P SERVICE 2

Product details

Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078149
Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078149



Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI 4 1P SERVICE 2
Grade of enclosure primary IP40
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 90 VA
Primary current [A] 0.4 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 48 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 1P S
Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI 4 1P SERVICE 2
Grade of enclosure primary IP40
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 90 VA
Primary current [A] 0.4 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 48 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 1P S
