Sale!

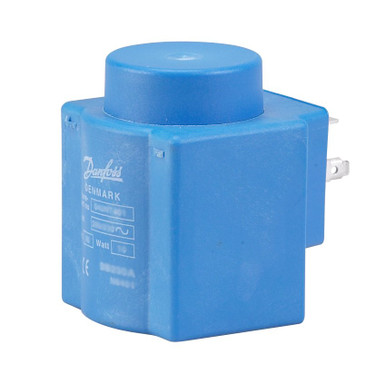

042N7401 Danfoss Solenoid coil, BB230A

042N7401 Danfoss Solenoid coil, BB230A

Original price was: $44.05.Current price is: $13.22.

SKU: 042N7401 Category: Tag:

Description

Product details

Gross weight 0.26 kg
Net weight 0.24 kg
EAN 5702423007134
Gross weight 0.26 kg
Net weight 0.24 kg
EAN 5702423007134



Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Nut and snap
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Duty rating Continuous
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 22 VA
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage [V] a.c. [Max] 230 V
Supply voltage [V] a.c. [Min] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BB230A
Type designation BB230A
Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Nut and snap
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Duty rating Continuous
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 22 VA
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage [V] a.c. [Max] 230 V
Supply voltage [V] a.c. [Min] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BB230A
Type designation BB230A

Product name: Solenoid coil, Type: BB230A, Supply voltage [V] AC: 220 – 230, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm

Product details

Gross weight 0.26 kg
Net weight 0.24 kg
EAN 5702423007134
Gross weight 0.26 kg
Net weight 0.24 kg
EAN 5702423007134



Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Nut and snap
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Duty rating Continuous
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 22 VA
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage [V] a.c. [Max] 230 V
Supply voltage [V] a.c. [Min] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BB230A
Type designation BB230A
Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Nut and snap
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Duty rating Continuous
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 22 VA
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage [V] a.c. [Max] 230 V
Supply voltage [V] a.c. [Min] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BB230A
Type designation BB230A
