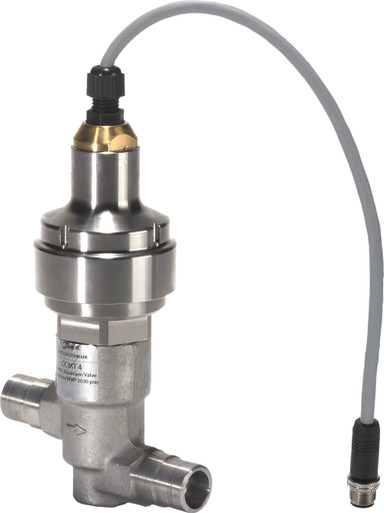

027H7201 Danfoss Electric regulating valve, CCMT 4

027H7201 Danfoss Electric regulating valve, CCMT 4

Original price was: $1,587.17.Current price is: $317.43.

SKU: 027H7201 Category: Tag:

Description

Product details

Gross weight 1.86 kg
Net weight 1.5 kg
EAN 5702428453363
Gross weight 1.86 kg
Net weight 1.5 kg
EAN 5702428453363



Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -40 °F
Approval UL
Connection Solder size [in] 5/8 in
Connection standard EN10220
Connection Weld size [in] 1/2 in
Cv value [gal/min] 0.52 gal/min
Diff.press.setting range [bar] 90 bar
Diff.press.setting range [psi] 1305 psi
Further information Special settings for Japan
Kv value [m³/h] 0.45 m3/h
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Packing format Single pack
Product description Electric Expansion Valve
Product family name CCMT
Product group Press. and temp. regul. valves
Product name Electric regulating valve
Quantity per packing format 1 pc
Refrigerants R134a
R744
Temperature range [°C] [Max] 60 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 140 °F
Temperature range [°F] [Min] -40 °F
Type CCMT 4
Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -40 °F
Approval UL
Connection Solder size [in] 5/8 in
Connection standard EN10220
Connection Weld size [in] 1/2 in
Cv value [gal/min] 0.52 gal/min
Diff.press.setting range [bar] 90 bar
Diff.press.setting range [psi] 1305 psi
Further information Special settings for Japan
Kv value [m³/h] 0.45 m3/h
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Packing format Single pack
Product description Electric Expansion Valve
Product family name CCMT
Product group Press. and temp. regul. valves
Product name Electric regulating valve
Quantity per packing format 1 pc
Refrigerants R134a
R744
Temperature range [°C] [Max] 60 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 140 °F
Temperature range [°F] [Min] -40 °F
Type CCMT 4

Product name: Electric regulating valve, Type: CCMT 4, Refrigerants: R134a;R744, Further information: Special settings for Japan
