Description
Product details
| Gross weight | 10.25 kg |
| Net weight | 10.13 kg |
| EAN | 5702422170914 |
| Gross weight | 10.25 kg |
| Net weight | 10.13 kg |
| EAN | 5702422170914 |
| Category | II |
| Colour Paint | Cr3 / TLP |
| Fluid Group | I |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| Product group | Liquid level regulating valves |

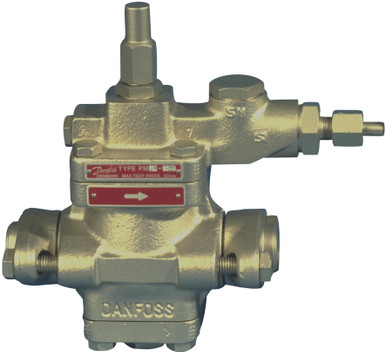

| Product name | Liquid level regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | PMFH 125 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Category | II |
| Colour Paint | Cr3 / TLP |
| Fluid Group | I |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| Product group | Liquid level regulating valves |
| Product name | Liquid level regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | PMFH 125 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
Max. Working Pressure [bar]: 28.0
Product details
| Gross weight | 10.25 kg |
| Net weight | 10.13 kg |
| EAN | 5702422170914 |
| Gross weight | 10.25 kg |
| Net weight | 10.13 kg |
| EAN | 5702422170914 |
| Category | II |
| Colour Paint | Cr3 / TLP |
| Fluid Group | I |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| Product group | Liquid level regulating valves |
| Product name | Liquid level regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | PMFH 125 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Category | II |
| Colour Paint | Cr3 / TLP |
| Fluid Group | I |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| Product group | Liquid level regulating valves |
| Product name | Liquid level regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | PMFH 125 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
